PORTABLE AIRFIELD LIGHTING TRAILER

For deployed, tactical, emergency short-term operations at military airbases, S4GA offers Portable Airfield Lighting System stored in a Trailer. S4GA Military Trailer is designed to illuminate runway within 20 minutes. Compliant with NATO STANAG requirements.

PORTABLE AIRFIELD LIGHTING FOR MILITARY

Volume System Portable Airfield Lighting System stored in a Trailer allows for easy and rapid illumination of temporary airfields, reserve airfield, and minimum operating strips.

Volume System military airfield lighting equipment complies with appropriate military environmental specifications. It is made of high-quality materials and can withstand repeated handling and transportation.

default
UR-101-Handheld-Controller-for-remote-activation-of-runway-lights
Mobile-full-PAPI-S4GA-Portable-Runway-Lighting
Mobile-PAPI-in-Trailer-S4GA-e1560851392103
Portable-Runway-Lights-at-night-S4GA-Trailer
S4GA-Airfield-Lighting-Trailer-1-e1560851240717
S4GA-Portable-Airfield-Lighting-Trailer-e1560851270659
S4GAPortable-Runway-Lights
S4GA-Portable-runway-lights-in-Trailer
Previous
Next

CONTACTLESS CHARGING

Inductive Charging:

  • Only 10 min required to plug-in 132 lights
  • Charging time: 8 hours
  • Charging starts instantly

AUTOMATIC LIGHT FAILURE REPORTING VIA SMS

Automatic Reporting via SMS System sends User notifications about light failures:

  • Low battery level
  • The light is out of the runway

AIRFIELD LIGHTING TRAILER PRODUCTS

SP-401 PORTABLE RUNWAY EDGE LIGHT

OPTICSNVG (Night Vision Goggles) compatible

LED type, 1.200 cd light output

Type: combination of Omni- and bidirectional

Colours: white/white, white/yellow, yellow/red

LED lifespan 100.000 hrs

AUTONOMY15 days on a single charge
BATTERYDeep cycle VRLA type, 9Ah/12V Standard type
Total capacity: 216W (2 x 9Ah x 12V)
User-replaceable
Standard type, available worldwide
POWER SUPPLYContactless charging
Charging time – 8 hours
Optional: solar power charging
CASINGUV-stabilized Lexan polycarbonate, glass dome
Color: aviation yellow
DIMENSIONS244 mm x 185 mm x 297 mm
WEIGHT7 kg
COMPLIANCENATO STANAG 3534 Airfield Lighting, Marking and Tone Down Systems for Non-Permanent Deployed Operations

SP-401 PORTABLE RUNWAY THRESHOLD END LIGHT

OPTICSNVG (Night Vision Goggles) compatible

LED type, 320 (red) /450 (green) cd light output

Type: bidirectional

Color: red/green, red, green

LED lifespan 100.000 hrs

AUTONOMY15 days on a single charge
BATTERY2 x built-in batteries
Deep cycle VRLA type, 9Ah/12V standard type
Total capacity: 216W (2 x 9Ah x 12V)
User-replaceable
Standard type, available worldwide
POWER SUPPLYContactless charging
Charging time – 8 hours
Optional: solar power charging
CASINGUV-stabilized Lexan polycarbonate, glass dome
Color: aviation yellow
DIMENSIONS244 mm x 185 mm x 297 mm
WEIGHT7 kg
COMPLIANCENATO STANAG 3534 Airfield Lighting, Marking and Tone Down Systems for Non-Permanent Deployed Operations

SP-401 PORTABLE TAXIWAY LIGHT

OPTICSNVG (Night Vision Goggles) compatible

LED type, 11 cd

Type: omnidirectional

Color: blue

LED lifespan 100.000 hrs

OPERATION TIME15 days on a single charge
BATTERY2 x built-in batteries
Deep cycle VRLA type, 9Ah/12V standard type
Total capacity: 216W (2 x 9Ah x 12V)
User-replaceable
Standard type, available worldwide
POWER SUPPLYContactless charging
Charging time – 8 hours
Optional: solar power charging
CASINGUV-stabilized Lexan polycarbonate, glass dome
Color: aviation yellow
DIMENSIONS244 mm x 185 mm x 297 mm
WEIGHT7 kg
COMPLIANCENATO STANAG 3534 Airfield Lighting, Marking and Tone Down Systems for Non-Permanent Deployed Operations

UR-101 HANDHELD CONTROLLER

LIGHTING SYSTEM CONTROLOn/Off Button: available
Operating modes: Visible, NVG (Night Vision Goggles), Dust till Dawn
Lights Intensity: 10%, 30%, 100%
OPERATING RANGEUp to 1.500 m, relayed (each light is a repeater)
COMMUNICATION BETWEEN CONTROLLER AND LIGHTSType: wireless Mesh network
Frequency: automatically modulated and encrypted
Radio transceiver: 868 Mhz
BATTERYLithium-ion Type: 7V/4Ah
Autonomy: 48 hrs
CASINGNon-corrosive powder-coated steel
Colour: black
COMPLIANCE2014/35/UE 2014/30/UE 2011/65/UE 1999/5/EC

ALL TRAILER PRODUCTS

S4GA Portable Approach Light
SP-401 PORTABLE APPROACH LIGHT
S4GA Portable Runway Threshold End Light
SP-401 PORTABLE THRESHOLD LIGHT / RUNWAY END LIGHT
S4GA Portable Runway Threshold Identification Light
SP-401 PORTABLE RUNWAY END IDENTIFIER LIGHT
S4GA Portable Runway Edge Light
SP-401 PORTABLE RUNWAY EDGE LIGHT
S4GA Portable Taxiway Light
SP-401 PORTABLE TAXIWAY LIGHT
Portable halogen PAPI lights
PORTABLE HALOGEN PAPI LIGHTS
S4GA Portable LED PAPI
PORTABLE LED PAPI LIGHTS
UR-101 Handheld Controller for S4GA lights
UR-101 HANDHELD CONTROLLER
UR-201 CONTROL & MONITORING UNIT
ALCMS BASIC
S4GA ALCMS Airfield Lighting Control And Monitoring System
ALCMS ADVANCED
OCT-401 Charger for S4GA SP-401 Airfield Lights
OCT-401 CHARGER FOR SP-401 AIRFIELD LIGHTS

PORTABLE AIRFIELD LIGHTING

Volume System Portable Airfield Lighting stored in a Trailer is designed for quick and easy illumination of a temporary runway. This versatile portable airfield lighting system is used by both civil and military airports to secure night operations. S4GA Trailer contains a complete set of equipment required to illuminate temporary runway according to international standards.

TRAILER FOR MILITARY AIRBASES

Military Airfield Lighting TrailerVolume System Trailer, as well as other military airfield lighting solutions, is the best AGL military equipment for air bases. Most of them are located in remote areas with limited or NO access to electrical infrastructure. It’s not an issue because S4GA Trailer is equipped with diesel generators and power banks that can charge airfield lights and mobile PAPI lights. Airfield lighting trailer is designed to operate in extreme weather conditions and ensure continuous operations during a long period of time.

TRAILER FOR TEMPORARY RUNWAYS

Airfield Lighting Trailer is applicable for civil temporary runways and humanitarian missions. It can be used as temporary runway lighting for regional and domestic airports. It accommodates complete airfield lighting system to illuminate for 2.500 m runway in accordance with ICAO.

Volume System Trailer is suitable for airfield construction works. Easy drop in and drop out of the lights from the trailer allows quickly illuminate any part of the airfield – temporary taxiway, displaced threshold, temporary runway – or to identify construction area with obstruction lights.

BACKUP RUNWAY LIGHTING IN A TRAILER

Volume System Airfield Lighting Trailer can be also used by international airports as backup runway lighting. In case of failure of the main power source, airport personnel can use Volume System portable runway lights. Contactless charging inside the trailer makes it easy to charge the lights altogether in one place. No need to connect each light to the cable (it saves a lot of time!).

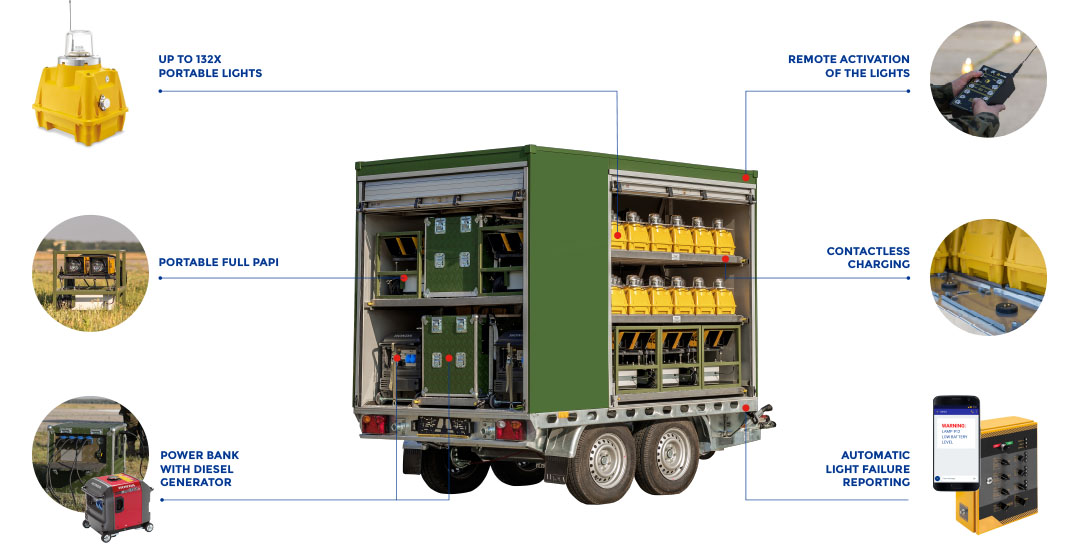

ADJUSTABLE TRAILER DESIGN

Portable airfield lights in trailerVolume System Trailer stores up to 132 portable airfield lights with accessories or 86 portable lights and full portable PAPI system. For civil airport, portable PAPI lights are often required. Additionally, the trailer can be equipped with portable diesel generator.

Physical dimensions of Volume System Trailer are adjustable: we construct the trailer according to a particular project and particular customer.

PORTABLE AIRFIELD LIGHTING APPLICATIONS

  • Portable airfield lighting systems
  • Emergency airfield lighting system
  • Portable runway lighting system for non-instrument VFR runways
  • Portable runway lighting system for non-precision IFR runways
  • Back-up lighting for precision approach IFR runways
